DL-FZ-100 employs a vibrating rotating disc to fill tea and various materials into pouches and sachets, incorporating an integrated intelligent control panel to oversee all operations in a cohesive manner.
Model :
DL-FZ-100Voltage :
220 VPacking Speed :
6-12 times/minuteWeight :
16 kgWeight range :
1-100 gramWeighing error :
±0.2 gramPower :
350 WDimension :
23*37*49 cmDESCRIPTION |
1.This product, designed after careful study by outstanding engineers, utilizes optical technology controlled by a microcomputer to achieve high accuracy, speed, and quality, effectively resolving the laborious traditional tea packaging process.
2.An automatic doser can handle the workload of several workers, making it a valuable assistant in tea production and tea shops.
3.The tea production line is integrated into the existing assembly line to achieve semi automated packaging.
ADVANTAGE |
1.Achieve rapid packaging with our machine's swift filling capabilities.
2.Constructed entirely from stainless steel, the durability of our machines is unmatched.
3.Custom high-end components are integral to the superior performance of our packaging machines.
4.Tailor your packaging operations with our machines' customizable function support.
5.Designed for ease of use, operators can manage our machines with minimal training.
SPECIFICATION |
Manual tea pouch filling machine specification list:
Model | DL-FZ-100 |
Operating Voltage | 220 V |
Dimensions |
23*37*49 cm
|
Material tray size | 300 mm |
Weighing range | 1-100 g |
Weighing error | ±0.2 g |
Work efficiency |
6-12 times/minute
|
If you have special need, it can be customized according to the needs of customers.

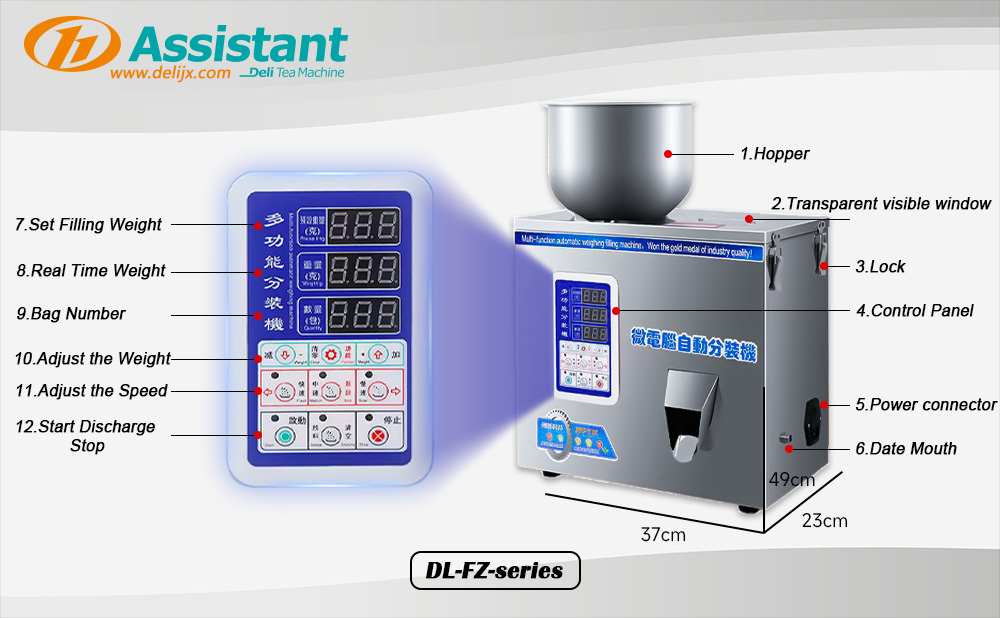

Product Information |
1 | Hopper | 7 | Set Filling Weight |
2 | Transparent visible window | 8 | Real Time Weight |
3 | Lock | 9 | Bag Number |
4 | Control Panel | 10 | Adjust the Weight |
5 | Power connector | 11 | Adjust the Speed |
6 | Date Mouth | 12 | Start Discharge Stop |
Application |
Application: Ideal for tea, food, seeds, fruits, grains, chemicals, and micro and small components, including general non-sticky solid materials.
This manual pouch sachet filling machine can pack a variety of materials to meet your needs of different packaging.
