1-5 gram Filter Paper Round Tea Bag Packaging Machine DL-LSDP-Y

Automatic round tea bag machine with hanging line and labeling for granular packaging in various industries. Features touch screen, PLC control, stepper motor, stable performance. Packaging materials include tea filter paper.

  • Model :

    DL-LSDP-Y
  • Sealing Type :

    Heat sealing
  • Voltage :

    220V
  • Bag Materials :

    Tea filter paper and so on
  • Packing Speed :

    10 - 40 bags/min
  • Weight :

    400 KG
  • Weight range :

    1-5 gram (2-10ml)
  • Power :

    1.6 KW
  • Dimension :

    116*85*174 cm
***DESCRIPTION***

Automatic round tea bag machine with hanging line and labeling for granular packaging in various industries. Features touch screen, PLC control, stepper motor, stable performance, and tea filter paper.

 *** ADVANTAGE***

1.The section where the material contact is stainless steel as the body of machine is optional for complete orpartial stainless steel and all out equipment have passed the CE Standard.

2.High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.

3.Embedded sealing , enhanced structure of heat sealing intelligent temperature controller and excellent heat balance make all kinds of packaging materials possible with good performance, low noise, clear cutting pattern and strong sealability.

4.Packaging speed and length of bags can be set to some extent without further adjustment and parts changing.

 ***SPECIFICATION***
Model DL-LSDP-Y
Dimension 1160* 850* 1740 mm
Bag Size Diameter 70 mm
Sealing Type
Heat sealing
Envelope Bag Size 100*85 mm
Packing Speed 10-40 bags/min
Measuring Scope 1-5 g (2-10 ml)
Weight 400 kg
Power 1.6 kw
Final Bag Shape
Round Tea Bag
Gas Request
≥0.6 m³ / min

If you have special need, it can be customized according to the needs of customers.

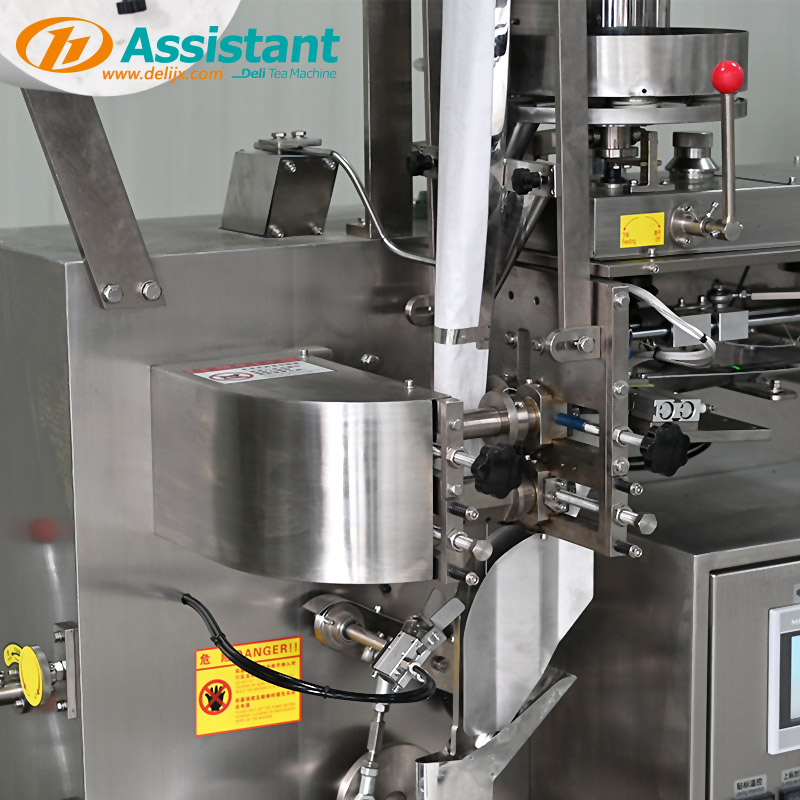

***Machine structure***

Round Shape Filter Sachet Tea Bag Packing Machine

1 Date printer 6 Roll Film
2 Touch screen dispaly 7 Material Hopper
3 Barometer 8 Measuring cup
4 Filter film roll holder 9 Border seal
5 Discharge location
10 Mold making part
***Application***

Coffee Powder Pod Packaging Machine

Suitable for tea, food, food, seeds, fruit, grain shape chemicals and, micro and small components such as general non-sticky solid materials.

***Product details***
  • Film Roll Device
    Film Roll Device
    The roll film is fast and does not stick to the film, and it is suitable for a variety of film types.
  • Touch Screen
    Touch Screen
    PLC color touch screen, can store parameters, multi-language.
  • Heat Sealing Device
    Heat Sealing Device
    Constant temperature cutter, adjustable temperature.
  • Metering Device
    Metering Device
    Accurately measure the weight of the material, how much.
