Dual-Head Electronic Scale Tea Bag Vacuum Sealing Machine DL-DZK-2S-A

The measurement method of the double-scales tea bag vacuum forming machine is dual electronic scales, optional vacuum, and can be filled with nitrogen. It has a wide packaging atmosphere and small error accuracy, and is suitable for air-compressed tea bags.

Model :
DL-DZK-2S-A
Voltage :
220V
Packing Speed :
12-20 bags/min
Weight :
185 KG
Power :
1.3 KW
Dimension :
70*67*147cm

Inquiry now

product introduction

Description

1.The whole machine is fully servo driven and fully automatic packaging.

2.The sealing time, the length and width of the vacuum packaging bag can be adjusted.

3.With electronic scale for weighing, high accuracy and precision.

4.Use imported PLC controller, touch screen microcomputer control, electronic scale interface display operation, simple and convenient, man-machine separation improves efficiency.

5.The packaging stability is high, the appearance is simple, the guaranteed efficiency is much higher than the manual, and the packaging effect is good.

Specification

Model	DL-DZK-2S-A
Dimension	7067147cm
Power	1.3 KW
Machine quality	185 KG
Packing Speed	12-20 bags/min
Weight range	1-25 g
Weight Error	±0.2 g
Bag Length	90-150 mm
Bag Width	55-90 mm
Final Bag Shape	Teardrop-shaped
-	Cube(Tofu)-shaped
-	Flat-shaped

If you have special need, it can be customized according to the needs of customers.

Features

1.Integrated automation from bag picking, bag opening, weighing, filling ,vacuuming,sealing,counting and product conveying.

2.This machine is electronic drive.It can reduce noise . And easy operation.

3.Adopt microcomputer control system and touch screen.

4.Can choose vacuum or no vacuum, can choose inner bag or without inner bag.

Application

1.Conventional packaging products of this packaging machine: Tieguanyin, Dahongpao, Jinjunmei, Lapsang Souchong.

2.Green tea, etc., packaging of curly, cord-shaped, granular tea leaves. It is also suitable for packaging small materials such as corn, peanuts, rice, etc. Packaging functions include inner film, vacuum, shaping or nitrogen filling functions.

3.Suitable for packaging of various bag shapes, such as square, flat, drop-shaped and other bag shapes.

Specification

Vacuum packaging machine indicator diagram

1	Control system	5	Hopper
2	Stainless steel	6	Placement bag

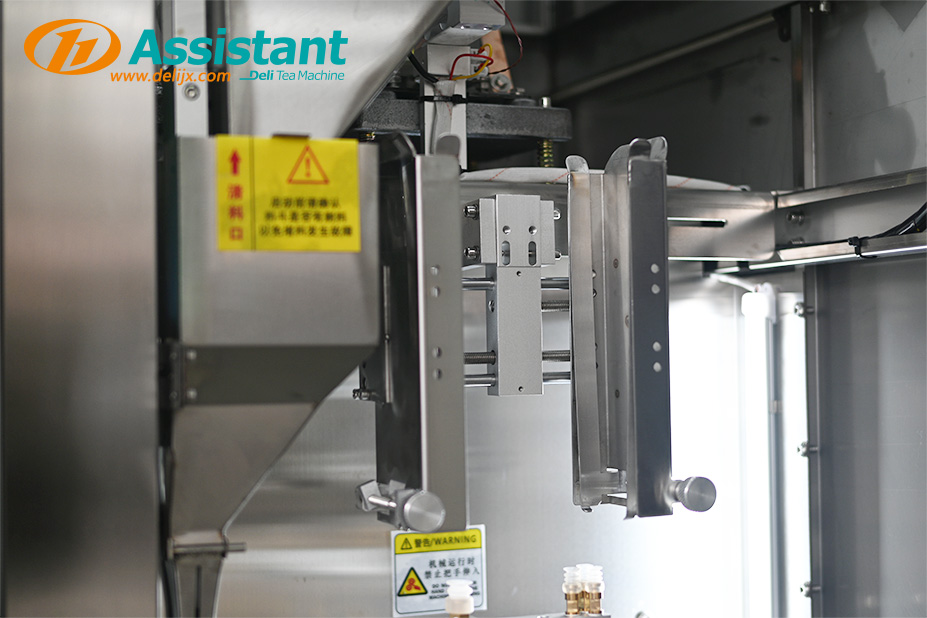

3	Bag former	7	Grab bag
4	Bag export	8	Universal wheel

Details

Tea Bag Vacuum Shaping Machine

smart touch screen

1.Control System

1.Adopt Taiwan Wecon 7.4-inch high-reliability true color touch man-machine interface.

2.The screen in the man-machine interface adopts humanized design and adopts simplified Chinese menu display, which is simple and easy to understand.

3.People who know Chinese characters can operate this interface proficiently after a few minutes of training.

Vacuum pump configuration

2.Vacuum pump configuration

The original use of domestic Zhongde pump environmentally friendly 98 vacuum pump, pumping 50 cubic meters per hour, the maximum vacuum pump vacuum reaches 0.1 mbar.

Frame structure

3.Frame structure

1.The machine features a frame structure made of food-grade 3042B stainless steel and aluminum alloy materials.

2.Utilizes high-quality stainless steel chain and membrane clamp transmission system for enhanced clamping force and durability.

3.Pneumatic components include original Airtac solenoid valve and cylinder, with a centralized combined valve island system for improved stability and reliability.

4.Vacuum system incorporates valve island pneumatic cut-off and deflation for increased performance and longevity.

Fault display and Treatment

4.Fault display and Treatment

1.The equipment is equipped with warning or protection systems such as power phase loss, reverse phase, high or low voltage, and regular mechanical lubrication, which are convenient for operators to use and adjust, and automatically stop protection in the event of a failure.

2.The computer displays the cause and treatment method of the failure.
