Vacuum inner film sample for packaging machine

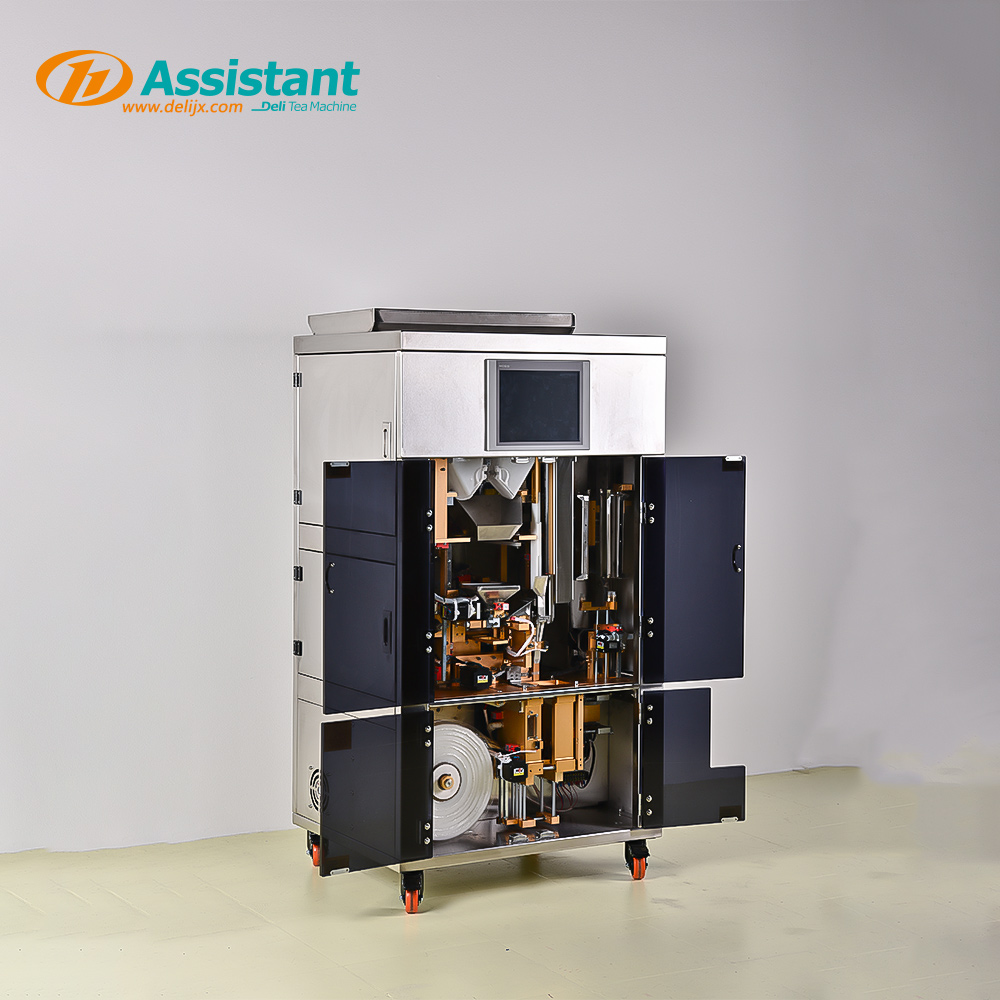

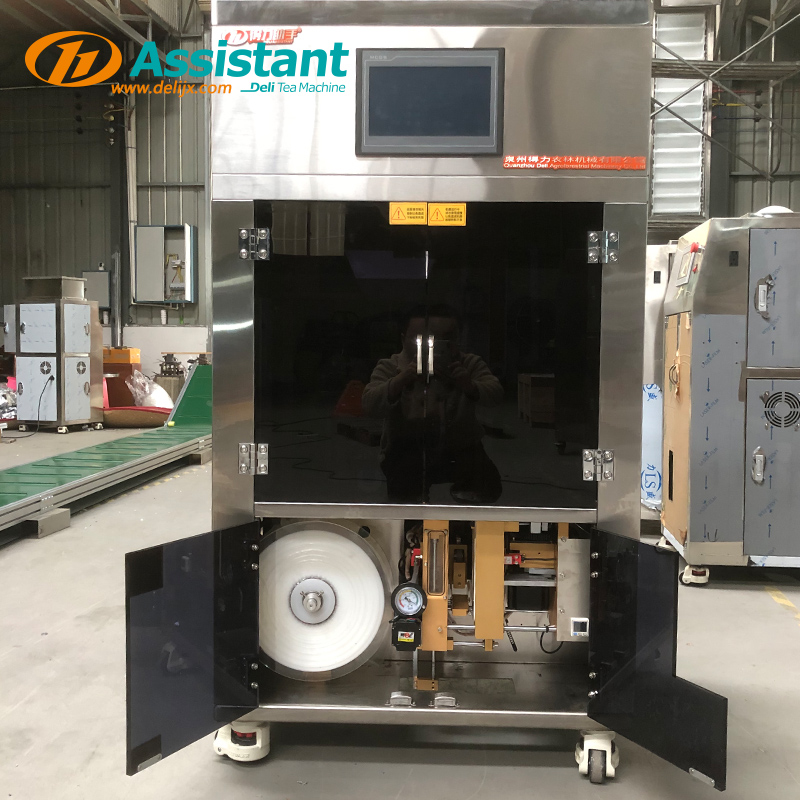

Automatic Electronic Scale Weighing Tea Bag Small Pouch Vacuum Packing Machine DL-DZKZX-2S-A

Automatic Vacuum Tea Bag Packing Machine Tea Bags Packer is a highly intelligent packing machine, it has high speed, high efficiency,small malfunction, etc., the machine is an ideal tool for finished tea packing. The tea bag packing machine for tea of high-grade packaging, divided and said after the tea plastic bag package, convenient after the procedure ( vacuum packing ), but also better reflect the grade of the product.

Model :
DL-DZKZX-2S-A
Voltage :
AC 220V/ 50HZ
Bag Materials :
Plastic
Packing Speed :
20-35 bags/min
Weight :
200KG
Bag width :
50-70mm
Weight range :
2-15 gram
Power :
2.1KW
Dimension :
800*650*1530 mm
Scale NO :
2

Inquiry now

product introduction

Description

Specification

Model	DL-DZKZX-2S-A
Dimension	8006501530 mm
Weight	200 KG
Voltage& power	AC 220V 2.1kw
Shape of size	Square/water drop/vacuum
Weight range	2-15 gram
outer bag length	90-170mm
outer bag width	50-70mm

If you have special need, it can be customized according to the needs of customers.

Features

The machine is able to automatically carry out functions like loading, measuring, bag production, vacuum, sealing, cutting, counting,and conveying finished products, among others.
The outer sealing paper is regulated by the stepper motor, ensuring a stable bag length and precise positioning.
The area in contact with materials can be stainless steel. The machine body can be optionally made of all or partial stainless steel. All the equipment has met the CE Standard.
The packaging speed and bag length can beset to a certain degree without the need for further adjustments or part replacements.
It employs intelligent PLC control and a touch screen for parameter setting, making operation easy.

Application

1.Common types of tea that can be packaged are: black tea, green tea, oolong tea, white tea, dark tea.

The tea vacuum inner film and outer bag packaging all-in-one machine has a wide range of applications and is suitable for various tea particles, including green tea, black tea, oolong tea, dark tea, white tea, yellow tea, etc. It can provide professional and efficient packaging solutions for different kinds of tea.

Inner bag pp film

2.Packaging material:

1.PP/PE,Al foil/PE,Polyester/AL/PE.

2.Nylon/enhanced PE ,paper/PE.

3.Film roll width:50-70cm，weight 4kg.

Product details

1	Tea scale	4	PLC screen
2	Filling equipment	5	Bagging device
3	Inner vacuum film	6	Vacuum device

Product details

preformed pouch filling sealing machine

premade pouch fill and seal machine

automatic plastic bag packing machine

1.Vacuum device

It can effectively remove the air inside the packaging bag, creating a vacuum environment. This helps to prevent oxidation and deterioration of the contents, especially for perishable items.

pouch vacuum packing machine Vacuum device

2.Electronic Scale Weighing device

The electronic scale weighing device in the vacuum tea packaging machine is an important component. It can accurately measure the weight of tea to ensure that the weight of each package of tea is accurate. Through high-precision sensors and advanced electronic technology, this device can perform weighing operations quickly and stably.
